What you will build

Someone uploads an Injuryreport whose ClaimNo keyword is still empty. Before the document is stored, they are asked whether a claim case should be created. On Yes, a workflow creates a Caseflow object and writes its ID into ClaimNo. On No, the document is stored and nothing else happens. Everything here is configuration: an interaction rule and a workflow definition. No script is involved. The names come from a claims-handling setup; substitute your own document type, keyword, and Caseflow class.

​
Prepare the configuration

You need a tenant with the workflow engine switched on, and interaction-rules.manage and workflow-engine.manage. Have ready:
  • A document type — this example uses Injuryreport — with a single-value keyword for the case reference, here ClaimNo.
  • A Caseflow class for the case object — here Case — and the attributes you want set on creation. Note the class’s ID and each of those attributes’ IDs: under Settings → Admin Settings → Caseflow → Applications & classes, the class list shows each class’s ID as # and a number below its name, and the class’s Attributes table shows each attribute’s ID the same way. Opening that page takes caseflow-configuration.view.
  • A test document and an account that can upload to the document type.
Build the workflow first. A rule’s outcome can only name a workflow that is already published, and an enabled rule is checked against it when you save.

​
Build the workflow

  1. Open Settings → Admin Settings → Workflow → Designer and create a definition named Create claim case.
  2. Choose the Document anchor and scope it to the Injuryreport document type. The rule is checked against this scope: it cannot match a document type the workflow would not start for.
  3. Add an initial node named Create case and a terminal node named Done.
  4. On Create case, add three actions:
    • Caseflow.CreateObject — the Case class’s ID in ClassId, one Attributes row per attribute with its ID and value, and an IntoVariable of claimCaseId.
    • Keyword.Update — the ClaimNo keyword, with the value {{instance.claimCaseId}}.
    • Document.AddNote — the text Claim case {{instance.claimCaseId}} created. The uploader answered: {{instance.uploadAnswer}}.
    A document workflow’s scope holds document types only, so the designer has no Caseflow class or attribute list to offer here: ClassId and each AttributeId are number fields, and you type the IDs you noted. The hints under them — Set the workflow’s Caseflow application first and Set the workflow’s Caseflow class first — do not apply to a document workflow, which cannot have a Caseflow application or class in its scope.
  5. Draw an automatic transition from Create case to Done.
The note is where the answer lands in this workflow. A rule’s outcome has to map the answer to at least one variable, and the workflow has to read every variable the rule maps, so uploadAnswer must appear somewhere in the definition. Here it gives the document a record of what the uploader chose. On the definition’s Triggers tab, add a document.created trigger with this filter:
$interaction is null unless an answered interaction rule named this definition, so the filter means start only when someone answered Yes to the question this workflow belongs to. Every other upload of an injury report is ignored.
Type $ in the filter to pick $interaction.value from the editor’s suggestions; a document.created trigger offers it. The editor does not check "yes" against the rule’s choices, so make sure it matches the value you give Yes, create on the rule’s Prompt tab below.
Validate, save, and publish. Publishing makes the definition selectable in the rule’s outcome.

​
Create the interaction rule

Open Settings → Admin Settings → Workflow → Interaction rules, choose New interaction rule, and fill in the four tabs. General — name the rule, keep the trigger point Document upload, set the order to 10, and leave it enabled.

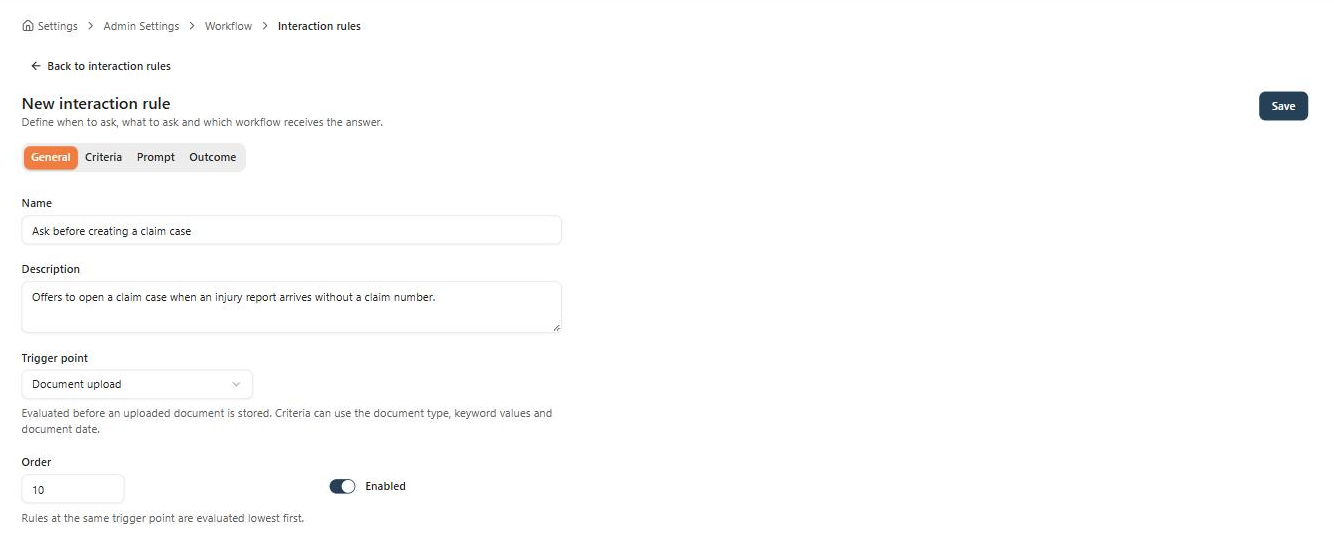

The General tab of a new interaction rule named Ask before creating a claim case, with trigger point Document upload, order 10, and the Enabled switch on.

General: the rule's name, trigger point, and evaluation order.

Criteria — Document Type equals Injuryreport AND a Keyword Condition on ClaimNo with the operator is empty.

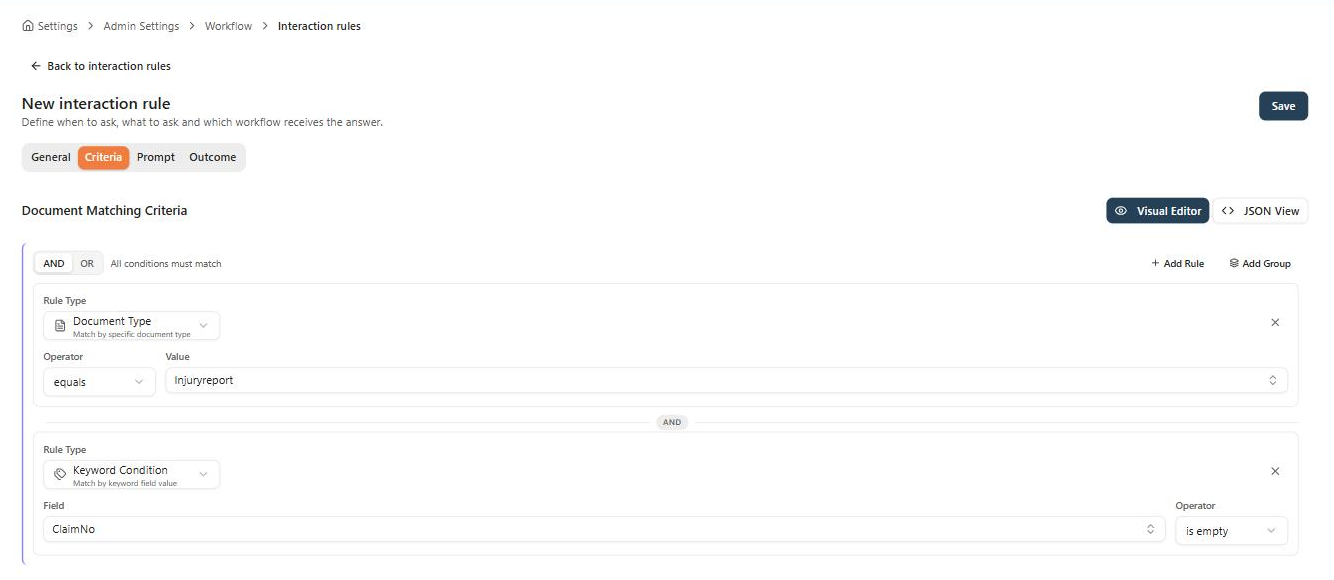

The Criteria tab in the Visual Editor, with two rules joined by AND: Document Type equals Injuryreport, and Keyword Condition ClaimNo is empty.

Criteria: ask only for injury reports that arrive without a claim number.

Prompt — title Create a claim case?, a message explaining what happens, choices Yes, create (value yes) and No (value no), and Allow cancel off.

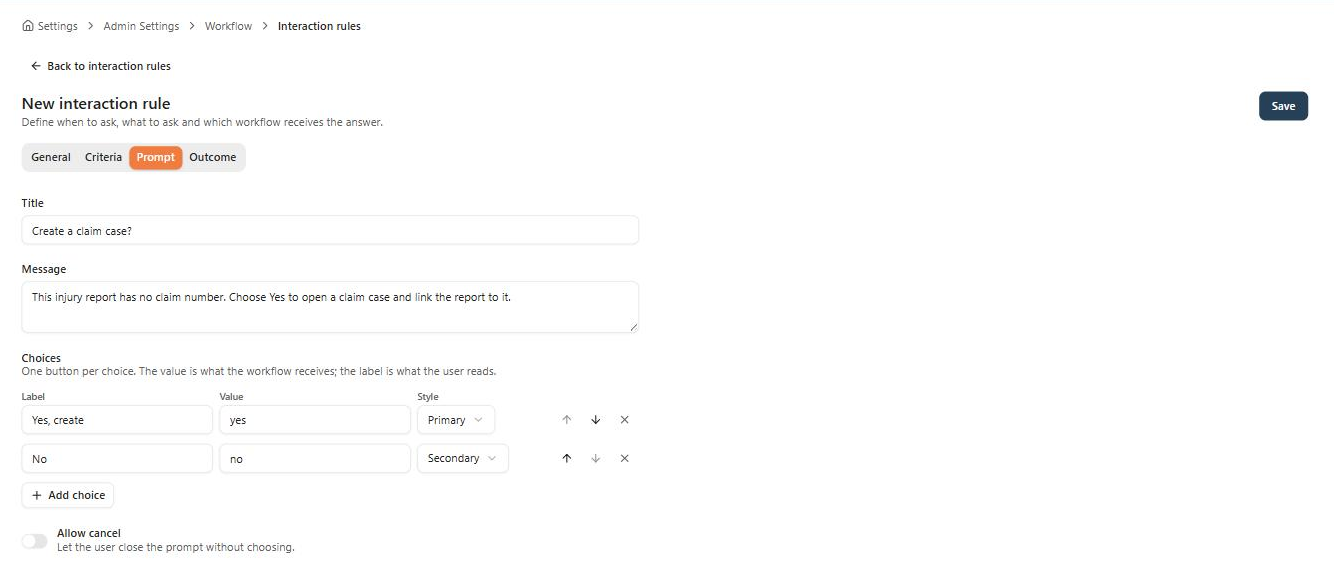

The Prompt tab with the title Create a claim case?, an explanatory message, two choices — Yes, create with value yes and No with value no — and Allow cancel switched off.

Prompt: the label is what the uploader reads, the value is what the workflow tests.

Outcome — workflow Create claim case, and one mapping row: variable uploadAnswer receives the choice label.

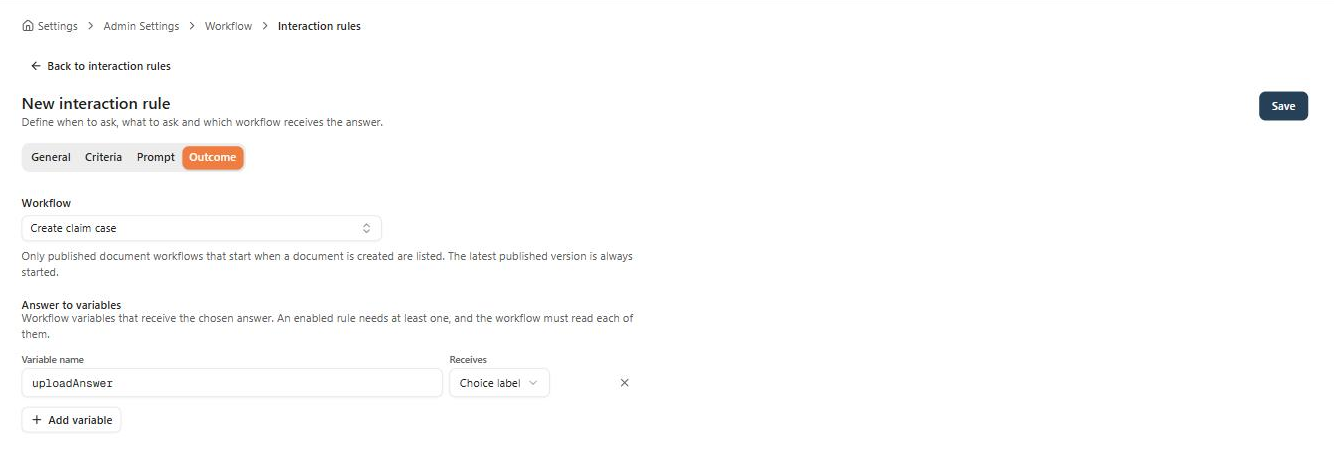

The Outcome tab with the workflow Create claim case selected and one Answer to variables row mapping uploadAnswer to the choice label.

Outcome: the workflow that receives the answer, and the variable it arrives in.

Save. Because the rule is enabled, saving checks it against the published workflow — its trigger, its scope, and that it reads uploadAnswer. Two details decide how this behaves later:
  • The value is what the workflow tests, the label is what the person reads. The filter above compares against yes, so that value has to stay yes even if the button is later reworded. The note records the label, so it reads the way the uploader saw it.
  • Allow cancel off means every injury report is stored, and No is how the uploader declines the case. With it on, cancelling skips storing that document altogether.

​
Verify the whole path

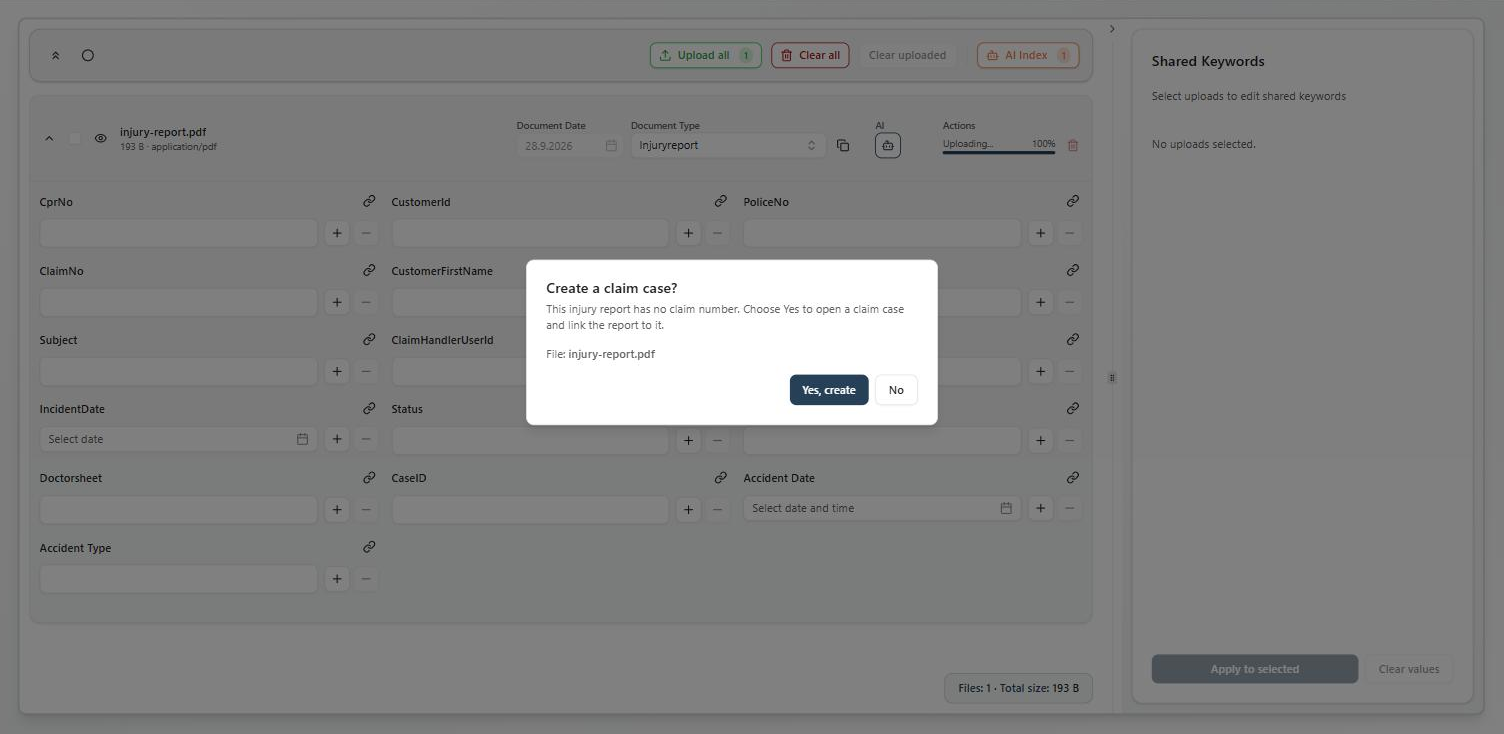

The Upload page with an injury report selected and a dialog titled Create a claim case?, showing the message, the file name, and the buttons Yes, create and No.

The question as the uploader sees it, before the injury report is stored.

Use instance history to confirm which version ran and what the instance’s variables held.

​
When it does not fire

The writes this workflow makes do not start workflows. The keyword update does not start Create claim case again, and the new Caseflow object does not fire Caseflow triggers either. A script doing the same writes behaves differently — see choosing between a workflow trigger and a script hook.
